Watchface Test

Preparation​

  1. Enable Developer Bridge mode, see Developer Bridge Mode for version requirements and enabling steps

  2. Log in with same account in the Watchface maker interface, simulator, Zepp APP

  3. The device supported by the current Watchface in the Watchface maker interface, the device selected by the simulator, the device bound to the Zepp APP should be the same

Testing​

Simulator test​

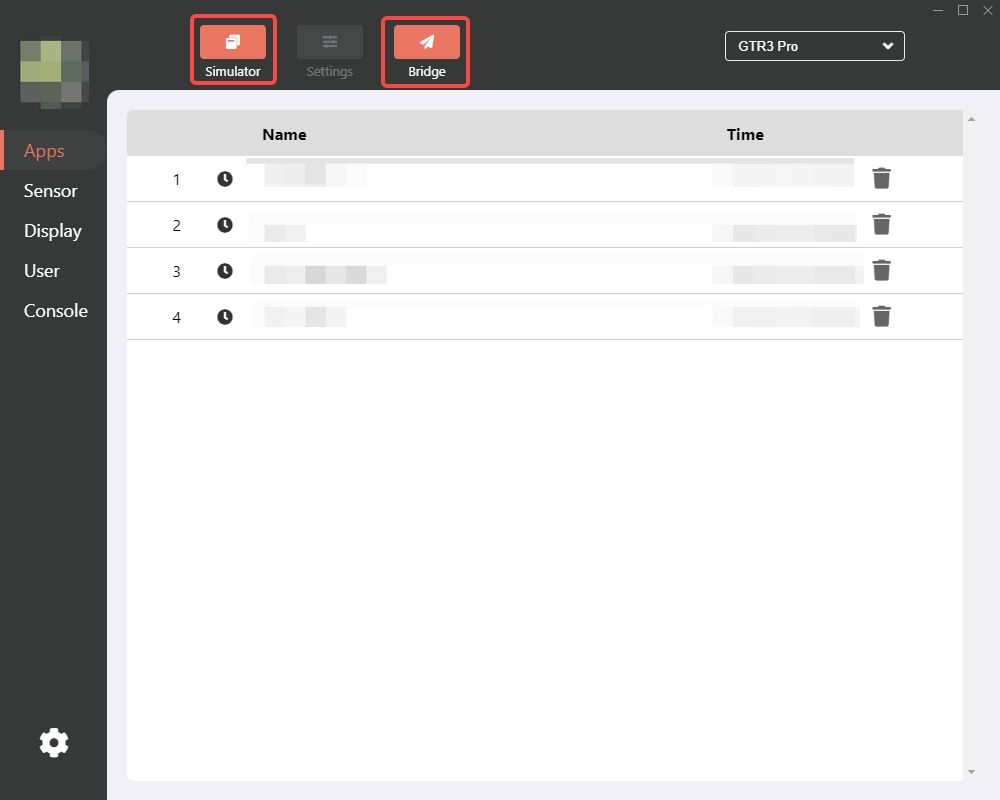

Open the Simulator, click the "Simulator" button in the upper left corner to open the watch simulator window, click the "Bridge" button at the top to open the Developer Bridge mode

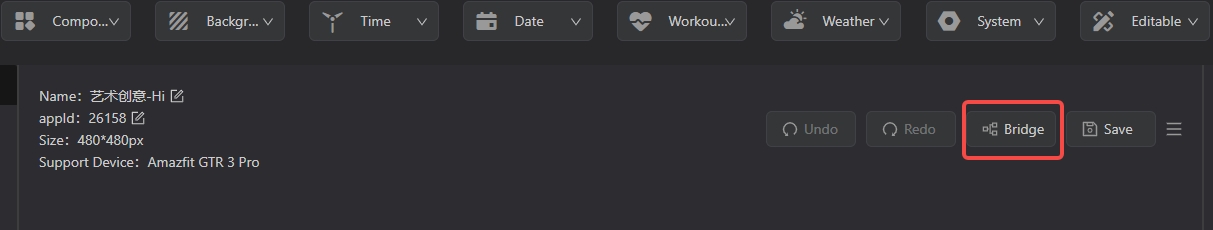

Select a finished Watchface in the Watchface maker interface, click the "Bridge" button in the upper right corner, and the Bridge interface will pop up

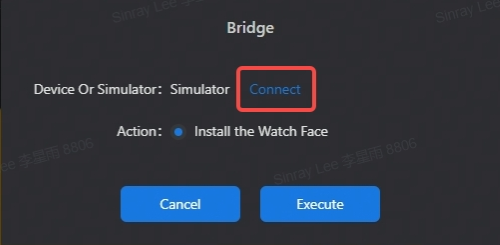

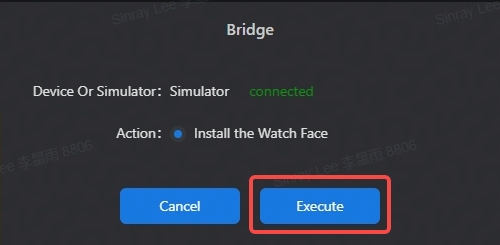

Click the "Connect" button, and the status will change to "Connected", that means, the simulator and the Watchface tool are successfully connected. Select the "Action" to be performed, such as "Install the Watchface", click the "Execute" button, and wait for the Watchface to be installed to the simulator

bridgeSimulatorConnect.png bridgeSimulatorConnectSuccess.png

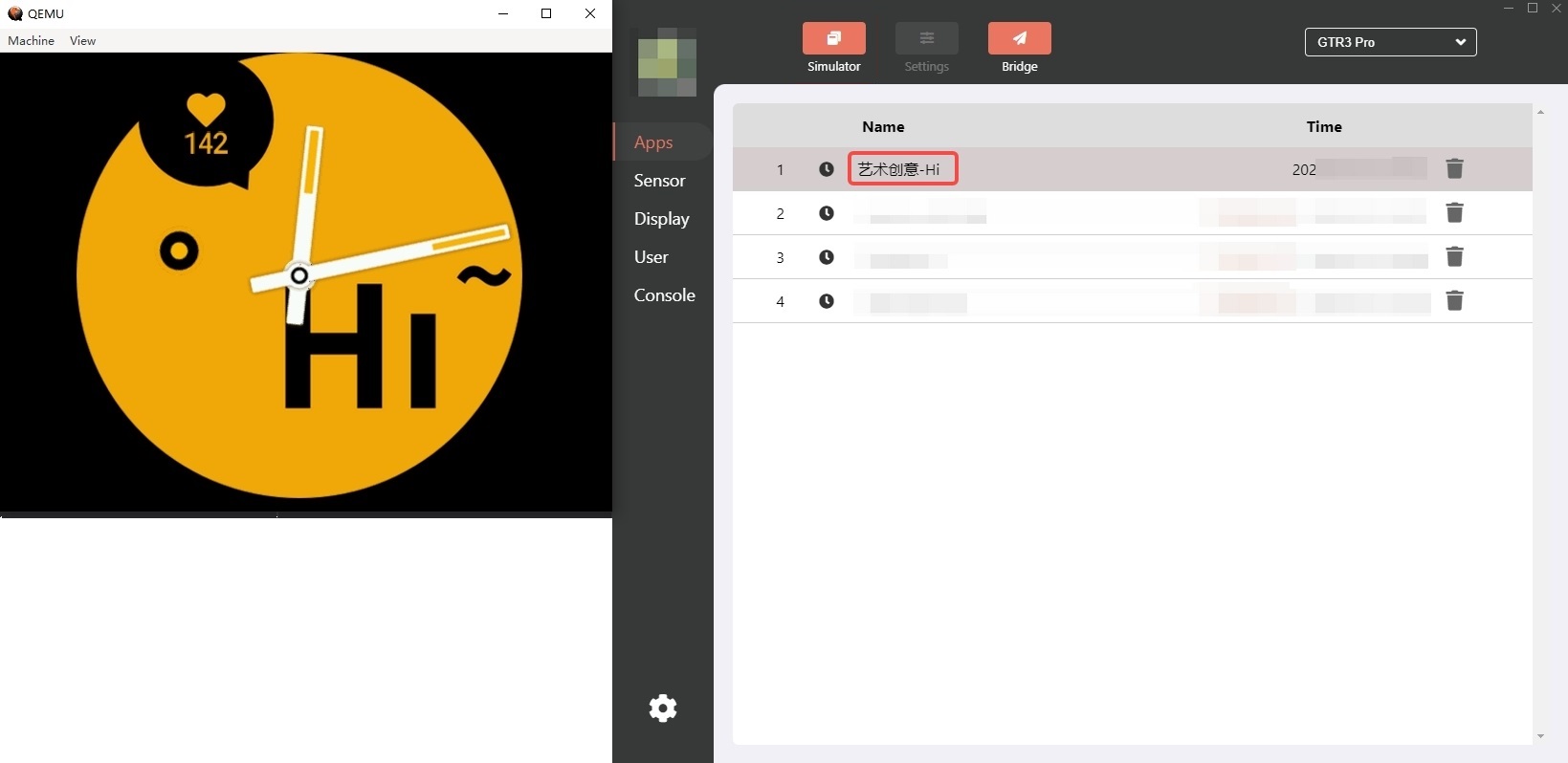

After the installation is complete, you can see the Watchface you created on the simulator


In the simulator, you can refer to Debugger to configure parameters such as heart rate and power

Device Test​

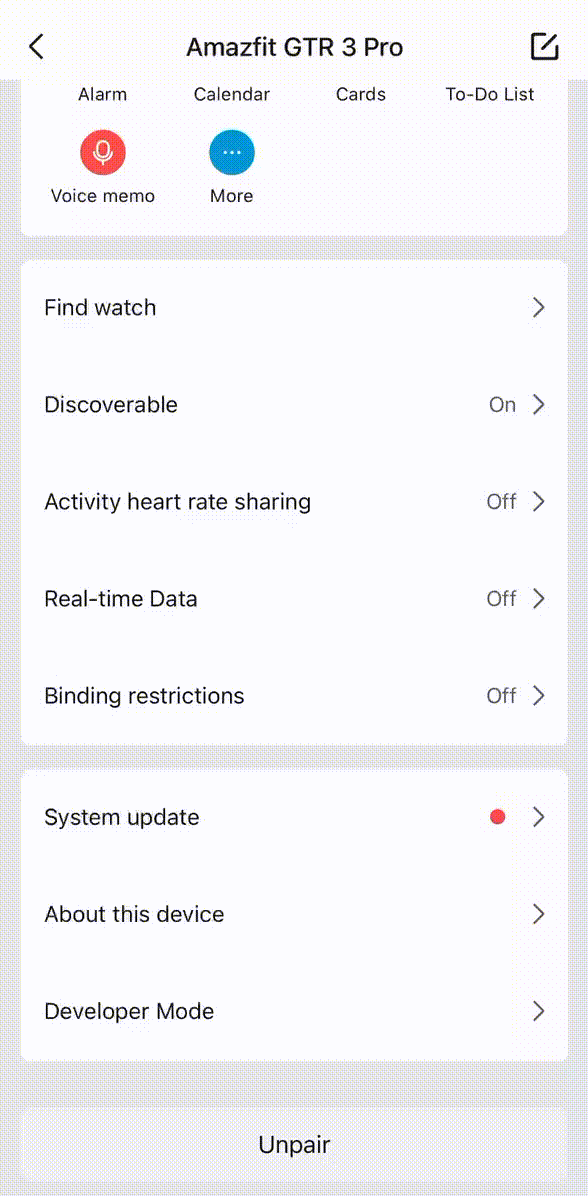

Open the developer mode of Zepp APP, click the + button in the upper right corner to expand the collapsed menu, click "Bridge" to open the Developer Bridge mode

Select a finished Watchface in the Watchface tool, click the "Bridge" button in the upper right corner, and the Bridge interface will pop up

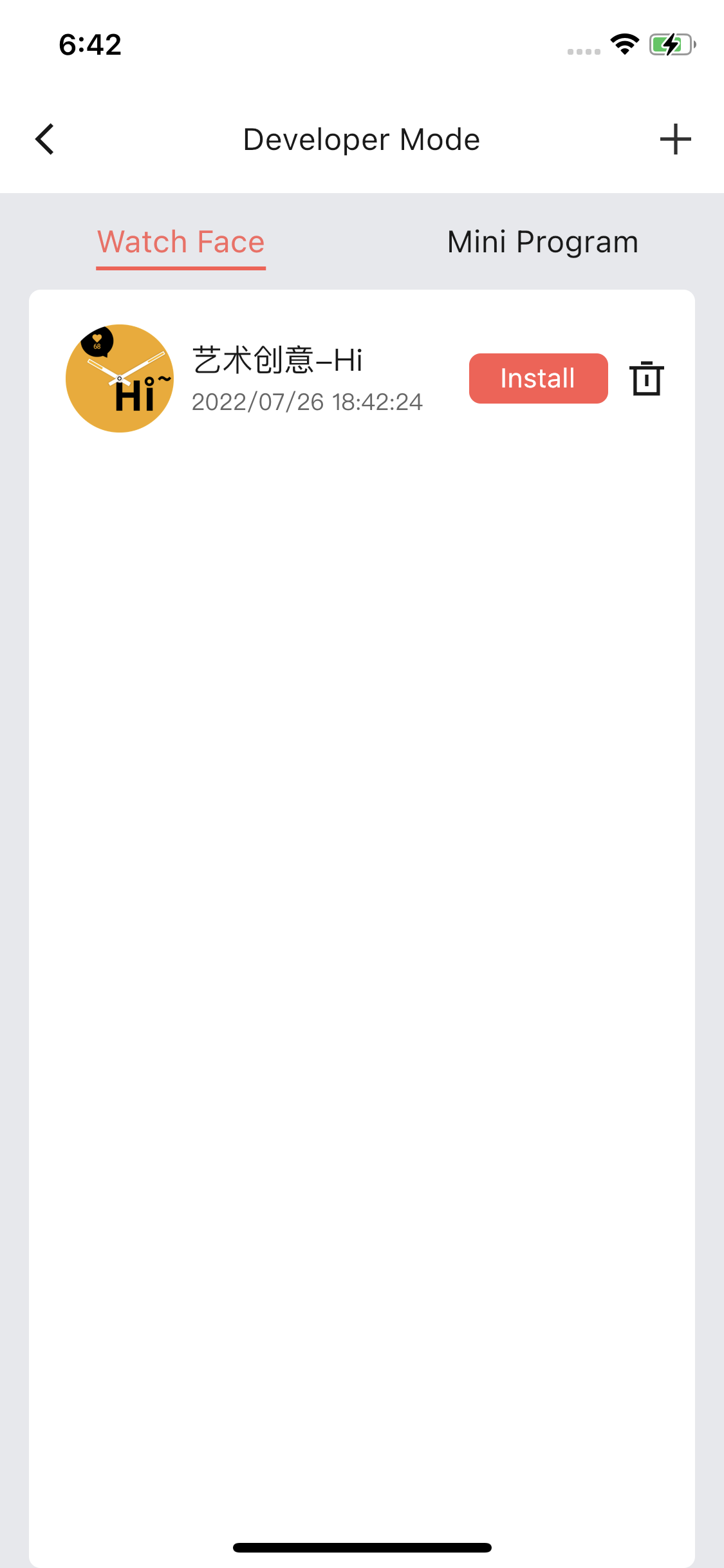

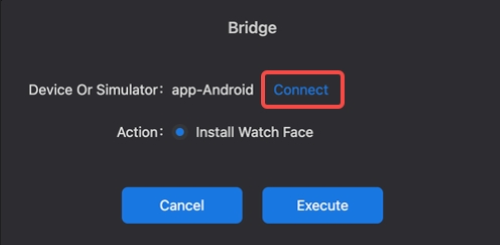

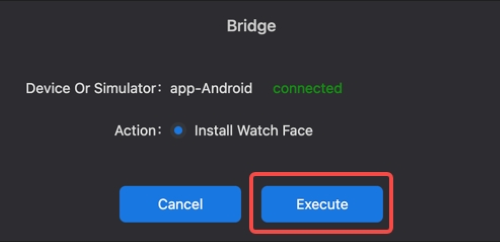

Click the "Connect" button, the status will change to "Connected", that is, the connection between the APP and the Watchface tool is successful. Select the "Action" to be executed, such as "Install the Watchface", click the "Execute" button, and wait for the Watchface to be transferred to the APP

bridgeAppConnect.png bridgeAppConnectSuccess.png

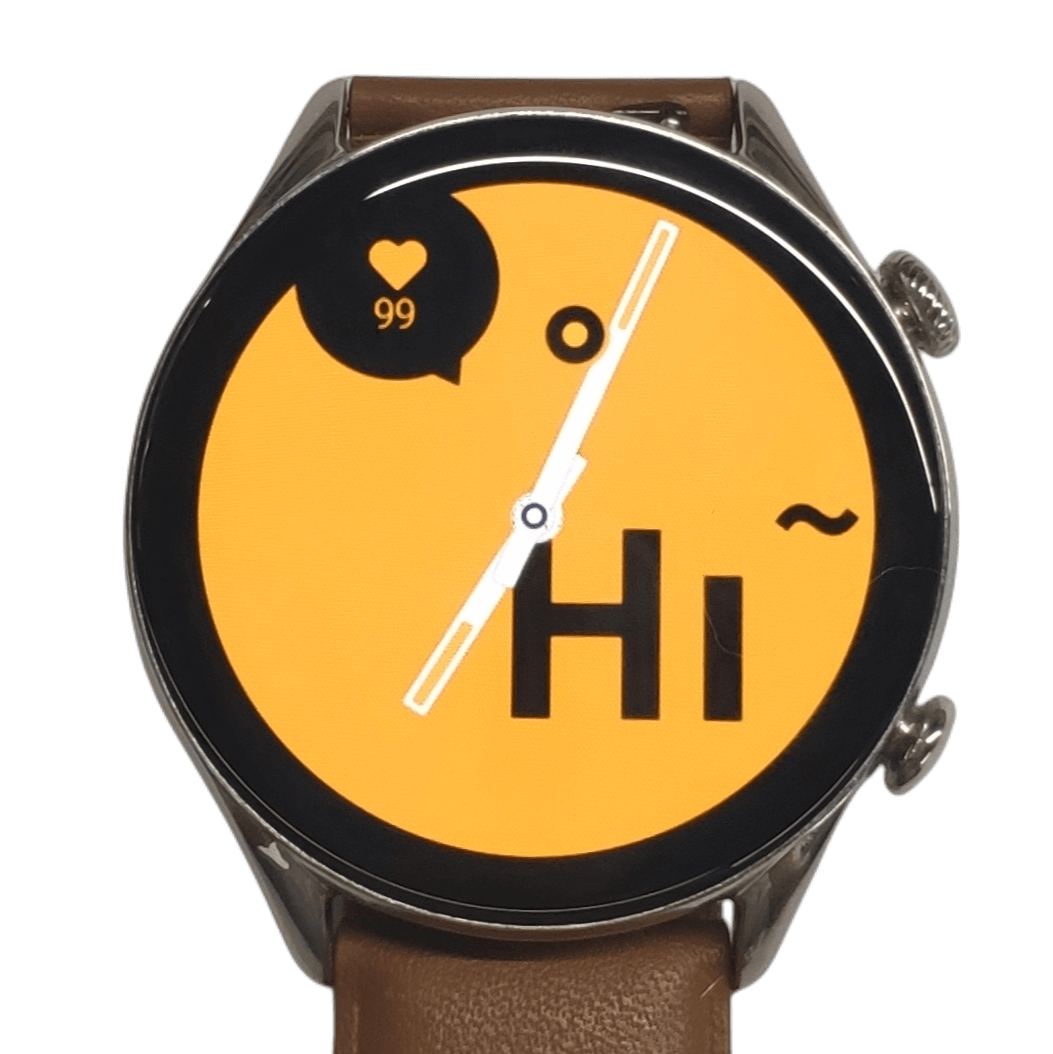

After the installation is complete, you can see the Watchface you created on your watch

Note​

  1. If the connection to the simulator or APP fails, or there is no device or simulator to connect to, please refer to Developer Bridge Mode for configuration

  2. For more simulator related information, please refer to Simulator
